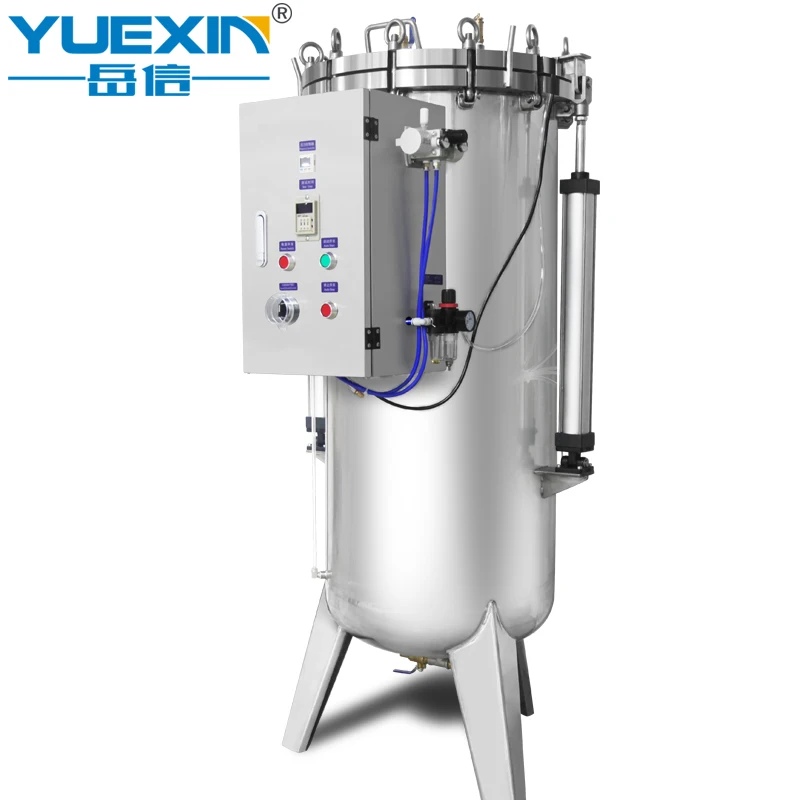

IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing

Guangzhou Yuexin Test Equipment Co., Ltd.
Contact Now

IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing

Brand Name : YUEXIN

Place of Origin : Guangdong, China

Model Number : YX-IPX8-30AIH-90L

MOQ : 1

Price : $9,999-10,999

Power supply : AC220V

Dimensions : 550*460*1650mm

Weight : 85kg

Material : SUS304

Test range : 0 ~300KPa

Inner size : φ300*H1200mm

Wall thickness : 3mm

Flange thickness : 15mm

Pressure error : ±0.002 Mpa

Pressure display : 0.001Mpa

Test water depth : 0--30m

Pressure range : 0--300Kpa(0.3Mpa)

Safety valve pressure : 0.35Mpa

Test time : 0-999min/h

Water temperature : Room temperature-80℃

Contact Now

Product Description
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
Product characteristics
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing

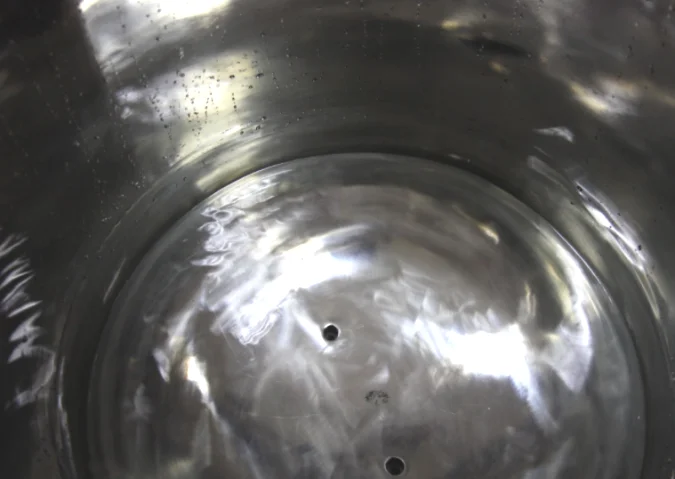

Inside the chassis.

The inner box is made of 304 stainless steel structure, which is very strong and durable
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing

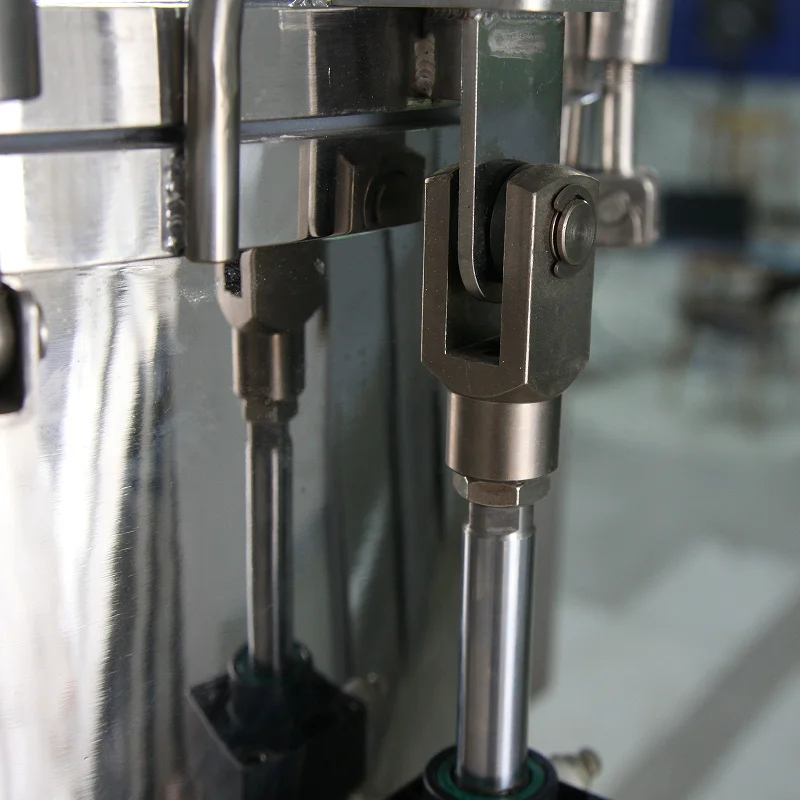

Cylinder drive.

Double cylinders are used to drive the can lid from the side, making it easier to open and close the lid.
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing

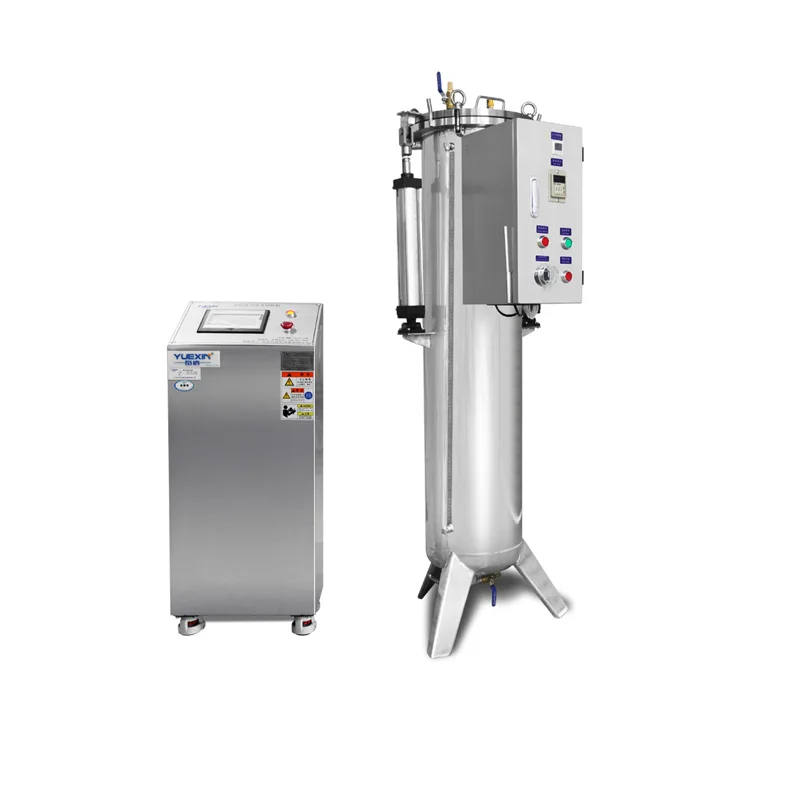

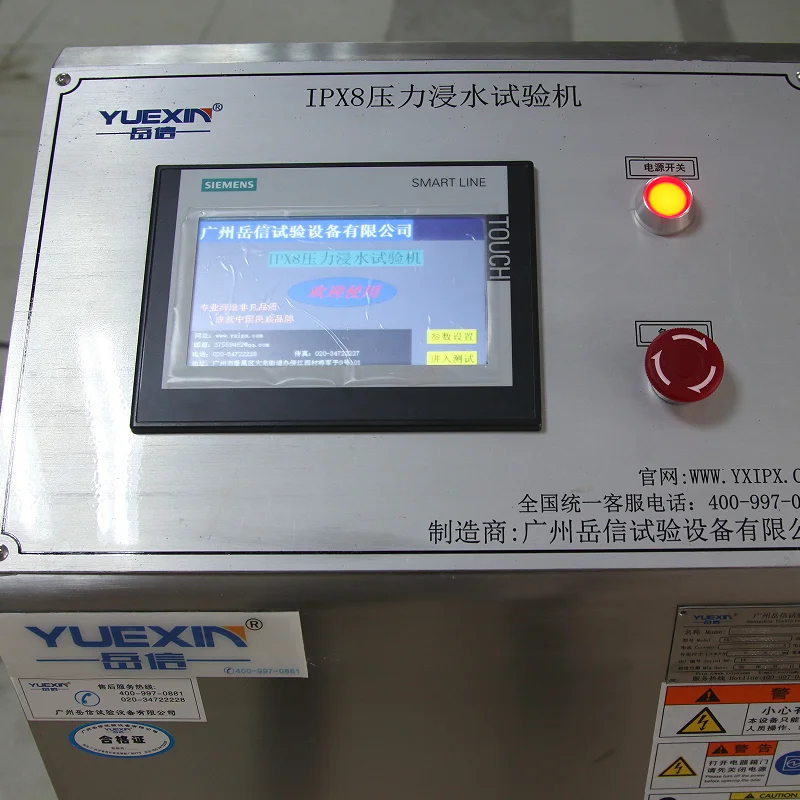

Independent control cabinet

Adopting a separate control system, touch settings and water pressure control are more convenient and safer
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing

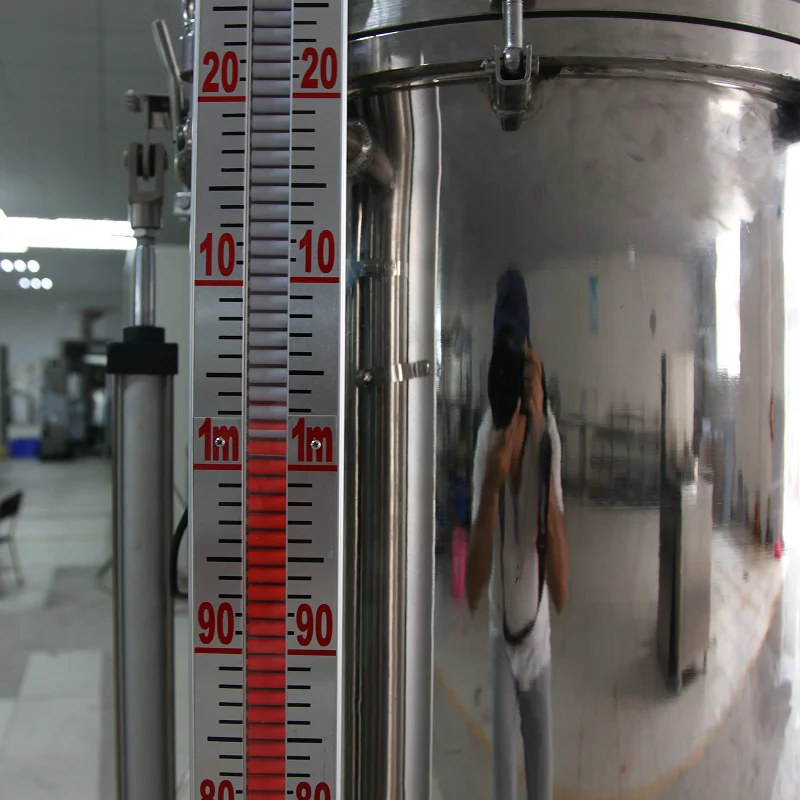

Liquid level display

The high-end version can add a magnetic flap level gauge to see the current liquid level in real time.
Specification
This Machine is mainly used to test the waterproof level of the shell of lamps, household appliances, electronic products, etc. by simulating the environmental conditions such as deep water.After the test, check and determine whether the waterproof level of the product shell meets the requirements, so as to facilitate enterprises to improve product design and factory inspection.
Model
YX-IPX8-30AIH-90L
Inner Size
φ300*H1200mm
External dimensions
L550*D450*H1650mm
Wall thickness of the Tank
3mm
Tank Material
304 stainless steel material
Flange thickness
15mm
Flange Material
304 stainless steel material
Equipment weight
About 85KG
Pressure control mode
Automatic adjustment
Pressure error value
±0.002 Mpa
Pressure display accuracy
0.001Mpa
Test water depth
0—30m
Pressure adjustment range
0—300Kpa(0.3Mpa)
Exhaust pressure of the safety valve
0.35Mpa
Test time
0-999min/h
Water temperature
Room temperature-80℃
Air intake mode
Adjust the pressure regulating valve manually
Voltage(V)
220V
Power(KW)
0.1KW
Standard
IEC60529:1989+A1:1999,GB4208,GB7000.(IPX8)
Company Profile
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.
We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.
We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.
We have a excellent after-sales service team that can respond and provide solutions quickly.
We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.
We have been granted 25 patents and passed the Quality management system:ISO9001.
We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.
The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.
Warmly welcome you to visit our factory!
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
IPX8 Waterproof Test Machine with LCD Touch Screen Controller and Double Cylinder Drive for Customized Water Immersion Testing
FAQ
1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?
Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.
If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.


2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English.
Other languages can be customized according to the needs of users.
